Heavy Duty Bentonite Waterproof Blanket for Large-scale Projects with High Tensile Strength

180m2
MOQ
0.83USD~2.75USD per sqm
fiyat
Heavy Duty Bentonite Waterproof Blanket for Large-scale Projects with High Tensile Strength
Özellikleri Fotoğraf Galerisi Ürün Açıklaması Fiyat talebi
Özellikleri
Teknik Özellikler
Genişlik: 4-6m
Şişme İndeksi: ≥24ml/2g
Tip: Geosentetik Kil Astar
Birim ağırlık: ≥4000g/㎡
Mavi kil: ≥30g/100g
Maksimum Yükte Uzama: ≥%10
Pesistance Hidrolik Basınç: ≤5,0X10ˉ11m/sn
Bentonitin Dayanıklılığı: ≥20ml/2g
Vurgulamak:

Heavy Duty Bentonite Waterproof Blanket

,

High Tensile Strength Geosynthetic Clay Liner

,

Thickened Impermeable Layer Bentonite GCL
Temel bilgiler
Menşe yeri: Çin
Marka adı: JianYi
Sertifika: ISO 9001 CE
Model numarası: 4000-6000g/㎡
Ödeme & teslimat koşulları
Teslim süresi: 30 gün
Ödeme koşulları: T/T,L/C
Yetenek temini: 3000T/ay
Ürün Açıklaması
Bentonite Waterproof Blanket - Heavy Duty Anti-seepage Material for Large-scale Projects
Product Introduction

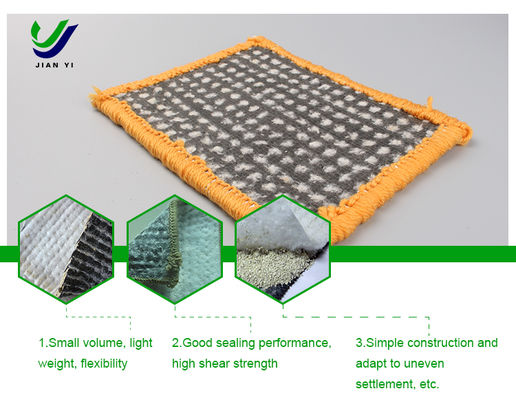

This heavy-duty bentonite waterproof blanket is engineered for large-scale, high-load infrastructure projects. It features a multi-layer composite structure comprising high-strength woven geotextile, thickened bentonite layer, and geogrid reinforcement. The product delivers exceptional tensile strength, tear resistance, and load-bearing capacity, capable of withstanding heavy machinery pressure and extensive backfill soil loads.
Key Features
  • Ultra-high mechanical strength: Tensile strength ≥ 80kN/m, tear strength ≥ 15kN, designed to withstand heavy machinery pressure and large backfill loads
  • Thickened impermeable layer: Bentonite layer thickness increased to 6-8mm for superior expansion capacity and enhanced impermeability
  • Excellent dimensional stability: Resists shrinkage and deformation under long-term load, maintaining waterproof layer integrity
  • Adaptable to complex terrain: Can be laid on irregular base surfaces and accommodates uneven settlement in large-scale projects
Application Fields
Ideal for large-scale landfills, artificial lakes and reservoirs, coastal reclamation projects, industrial parks, and high-speed railway subgrade anti-seepage applications. Particularly suitable for projects requiring extensive laying areas and heavy load bearing capacity.
Installation Guidelines
  1. Base surface preparation: Reinforce base surface with geotextile to enhance bearing capacity. Ensure surface is flat, compacted, and free of protrusions
  2. Mechanical laying: Utilize professional laying machinery for large-area installation. Maintain 30cm overlap width between blankets and compact overlap areas with heavy rollers
  3. Secure anchoring: Fix with high-strength anchor bolts at 1m spacing. Cover bolt heads with bentonite caps to prevent water seepage
  4. Layered backfilling: Backfill in 30-50cm layers, compacting each layer with rollers. Use cushion layer protection to prevent direct heavy machinery contact with waterproof blanket
Etiket:

Sızıntıya Karşı Geosentetik Kil Liner

Bentonit Gcl Jeosentetik Kil Dökme

Sodyum Bentonit GCL Liner
